Guide Orion O635CS Thermal Clip-On TIGUI682

The Guide Orion O635CS is a compact thermal imaging attachment designed for professional users who demand reliable performance in the field.

Powered by the next-generation APEXVISION infrared imaging system, it features a high-performance 640 × 512 @ 12μm thermal sensor with an ultra-sensitive NETD of <15mK, delivering exceptional image clarity, enhanced target recognition, and improved detail in challenging conditions.

With a balanced, streamlined design and robust construction, the Orion C Series provides stable thermal imaging and dependable performance for extended use across demanding environments.

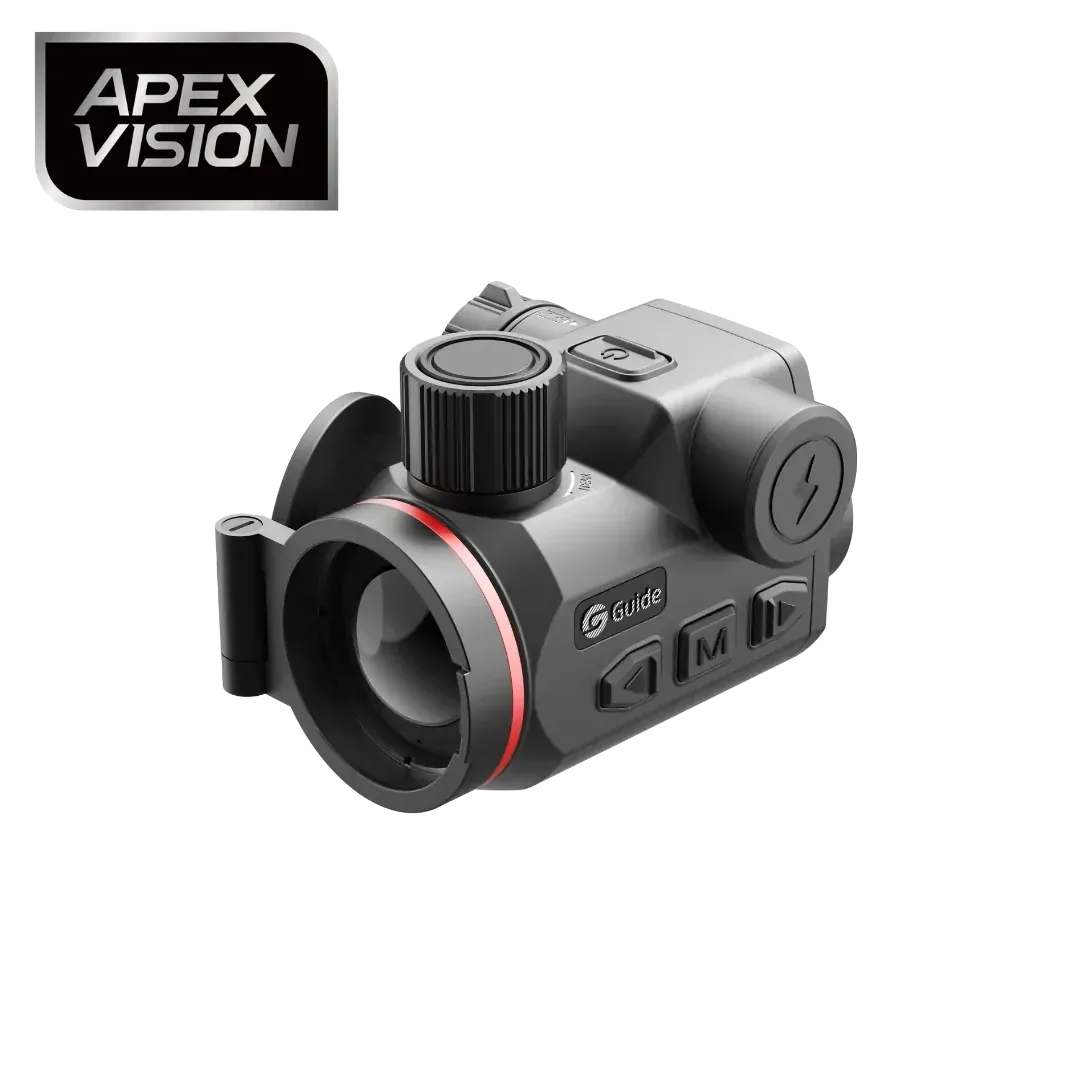

ApexVision technology Ultra-clarity

Guide outdoor’s next-generation thermal imaging solution that redefines the infrared core of outdoor optics from the ground up. Engineered for any condition, ApexVision delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging, and razor-sharp detail at long range.

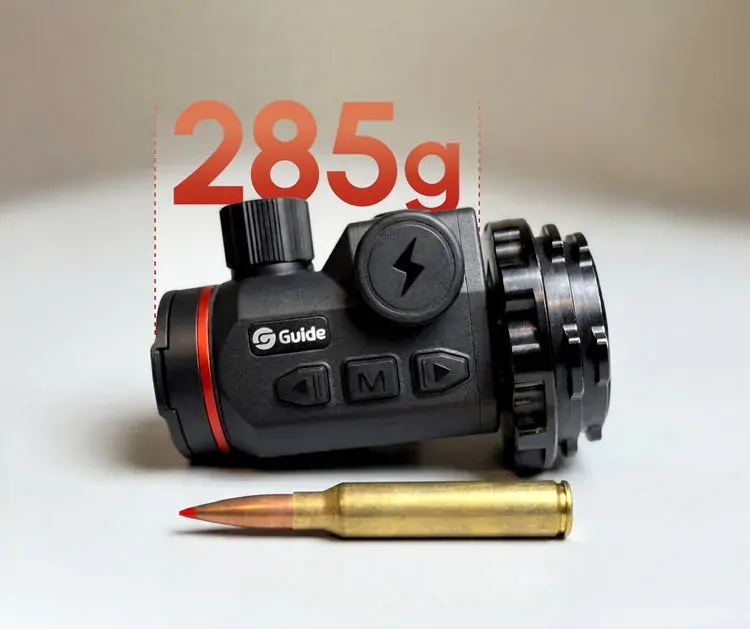

Ultra-light & Compact

The Orion C is engineered with extreme weight and size optimisation, making it one of the lightest 640×512 thermal clip-ons on the market. Its ultra-compact design minimises overall rifle setup weight while improving balance, delivering a more comfortable, stable, and natural shooting experience in the field.

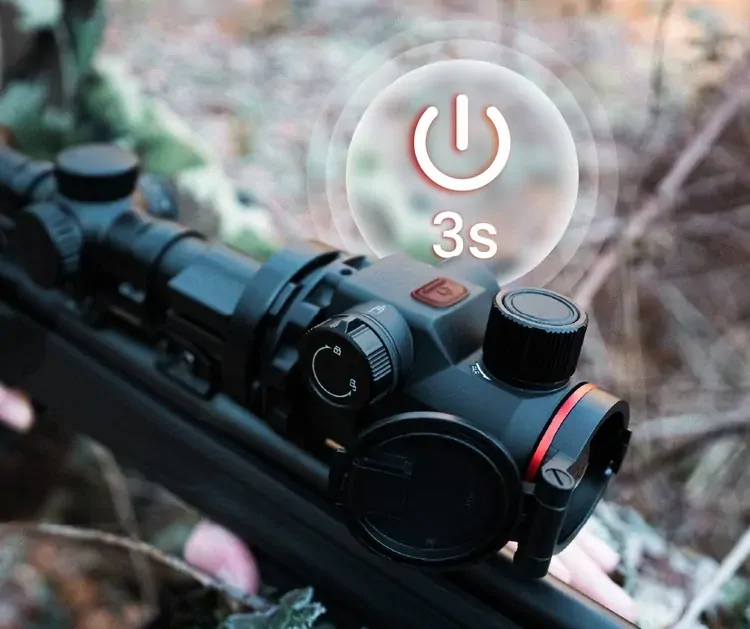

3-Second Fast Startup – Ready When It Counts

The Orion C powers up in just 3 seconds, so you're ready to respond instantly when every second matters. Ideal for fast-paced hunting, it ensures you never miss an unexpected opportunity.

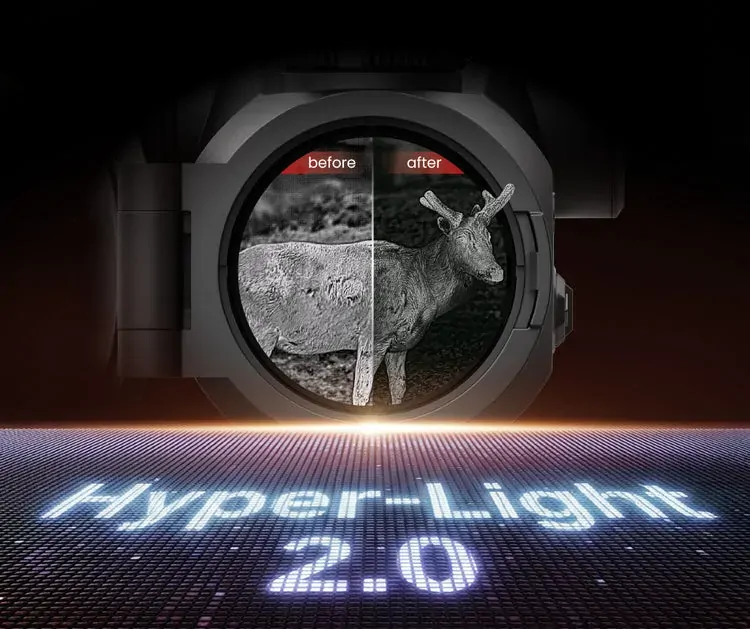

AI-Powered Hyper-Light 2.0 – Enhanced Visual Clarity

The advanced Hyper-Light 2.0 AI algorithm intelligently enhances contrast, brightness, fine detail, target definition, and tonal balance, delivering sharper, clearer thermal images for easier target detection and long-range observation.

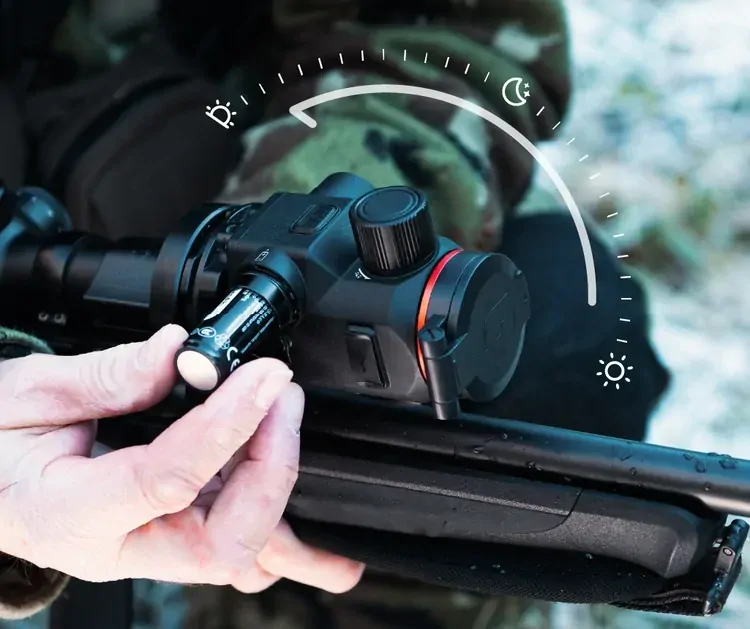

Ultra-Low Power Consumption – Hunt All Night

Optimised for maximum efficiency, the Orion C delivers extended runtime on a single charge. One rechargeable 18500 battery provides up to 6.5 hours of operation, while carrying a spare battery keeps you powered throughout an entire night in the field.

Specifications

Product Name	Guide Orion O635CS Thermal Clip-On
Laser Rangefinder	N/A
Type-C Power Supply	USB-C
Battery Operating Time	7 hours
Battery Type	Single, Replaceable 18500 Battery
Audio Recording	-
Standby Mode	-
Hotspot	-
Capture Snapshot	-
Record Video	-
Working Temperature	-20°C to 50°C
Dimension	99×73×68mm
Weight	285g
Protection Level	IP67
Image Pro	N/A
HSIS	N/A
Zoom Pro	N/A
Diopter	-
Exit Pupil	-
Palettes	White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Display	0.49'' AMOLED 1920×1080
Magnification	1x
Field of View (Degrees/m @ 100m)	12.5°×9.4°/22×17
Detection Range	1800m
NETD	15mK
Response Waveband	8 to 14μm
Pixel Interval	12μm
Frame Rate	50Hz
Sensor Resolution	640×512
Lens (Focal Length)	35mm
